Project Description

Description

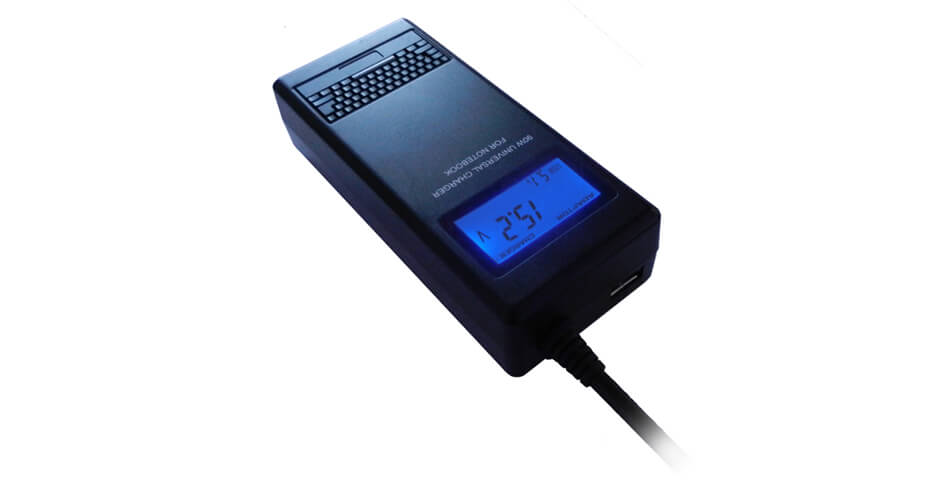

Auto-switching Universal Notebook Charger with LCD display and 5V2.1A USB port 90Watt

HKA90A1

Replacement to lost or defective original power supplies, ideal as an additional laptop adapter for home /office and trips, why you need to buy an expensive notebook charger from a big brand which can only charge one type of notebooks?

With Hekonda’s Universal Notebook Charger, it can support many popular notebook computers with the changeable tips. This Universal charger for laptop comes with 12 coded adapter tips for easy matching with notebook brand including Acer, Compaq, Dell, Fujitsu Gateway HP, IBM, Lenovo, Sony and Toshiba.

This convenient and portable Universal Notebook Charger with a high-speed USB charging port can make it suitable for all common related USB power devices including tablets, iPad, iPhone, Galaxy smart phone, MP3 players and more. The LCD display has a blue back-light, that gives a sense of luxury and gives an indication information about the device status.It is an excellent and reliable Universal Notebook Charger to support your high performance notebook computer.

Features

  • Perfect additional or replacement Universal Notebook Charger at home/office.
  • 5V/2.1A USB charging port perfect for fast charging of MP3,MP4,smart mobile phone ,Ipad, Iphone,Galaxy, and other related device with standard USB output.
  • More than 30 optional connectors cover almost all brands of notebooks- including Acer, Compaq, Dell, Fujitsu Gateway HP, IBM, Lenovo, Sony and Toshiba.
  • Coded tips make it easy to match correct tip with notebook brand.
  • Automatically adjusts output voltage according to which connector is fitted and showed by LCD display.
  • Compact size and lightweight convenient for travel.
  • Adopt ABS+PC materials for the housing, being safe and environmental friendly.
  • Protection against over current, over voltage, over load, over temperature and short circuit.

Specifications

  • Model:HKA90A1
  • AC input: 100-240V 50-60Hz
  • DC output: 9.5V-24V, USB port:5V 2.1A
  • Power:90W Max
  • Screen: LCD
  • Efficiency: >86%
  • Size: 132x58x31mm
  • N.W.: 318g

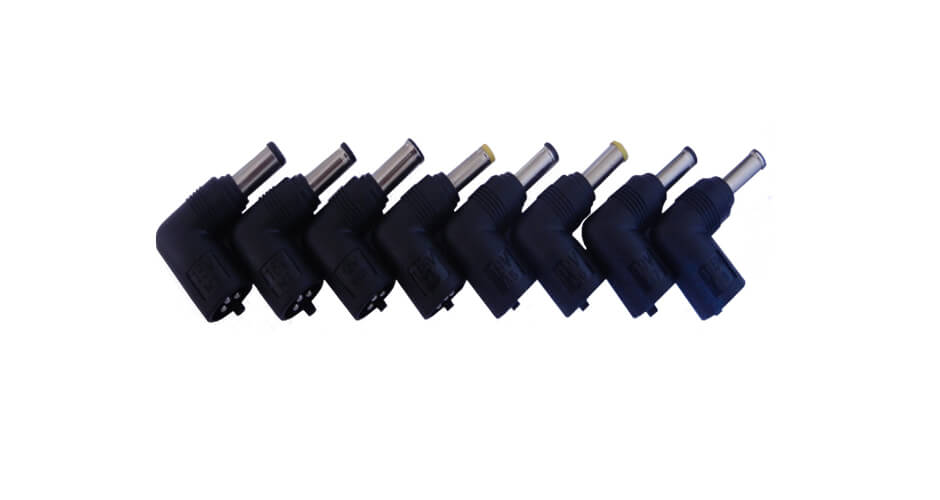

  • Standard tips (M1 to M8):
  •     15.0V/M1: 15.0V/6.3 x 3.0mm Toshiba
  •     16.0V/M2: 16.0V/5.5 x 2.5mm IBM, Lenovo
  •     16.0V/M3: 16.0V/6.5 x 4.4mm Sony, Fujitsu
  •     18.5V/M4: 18.5V/4.8 x 1.7mm Compaq, HP
  •     19.0V/M5: 19.0V/5.5 x 2.5mm Acer, Asus, Compaq, Delta, HP, Fujitsu, Gateway, Toshiba, Liteon
  •     19.0V/M6: 19.0V/5.0 x 3.0mm Samsung
  •     19.0V/M7: 19.0V/5.5 x 2.1mm Acer, Compaq, Delta, HP, Fujitsu, Gateway, Toshiba, Liteon
  •     19.5V/M8: 19.5V/6.0 x 4.4mm Sony
  • Optional tips: (special chipset inside)
  •     19.5V/M9: 19.5V/7.4 x 5.0mm Dell
  •     20.0V/M10: 20.0V/7.3 x 7.4 x 8mm Dell
  •     20.0V/M11: 20.0V/7.9 x 5.4mm IBM, Lenovo
  •     18.5V/M12: 18.5V/7.4 x 5.0mm HP, Compaq
  • Total 24 different connectors (optional)

Package Contents

  • Universal Notebook Charger with LCD display&USB – 90W
  • 8 standard adapter tips
  • AC power cord
  • User manual
